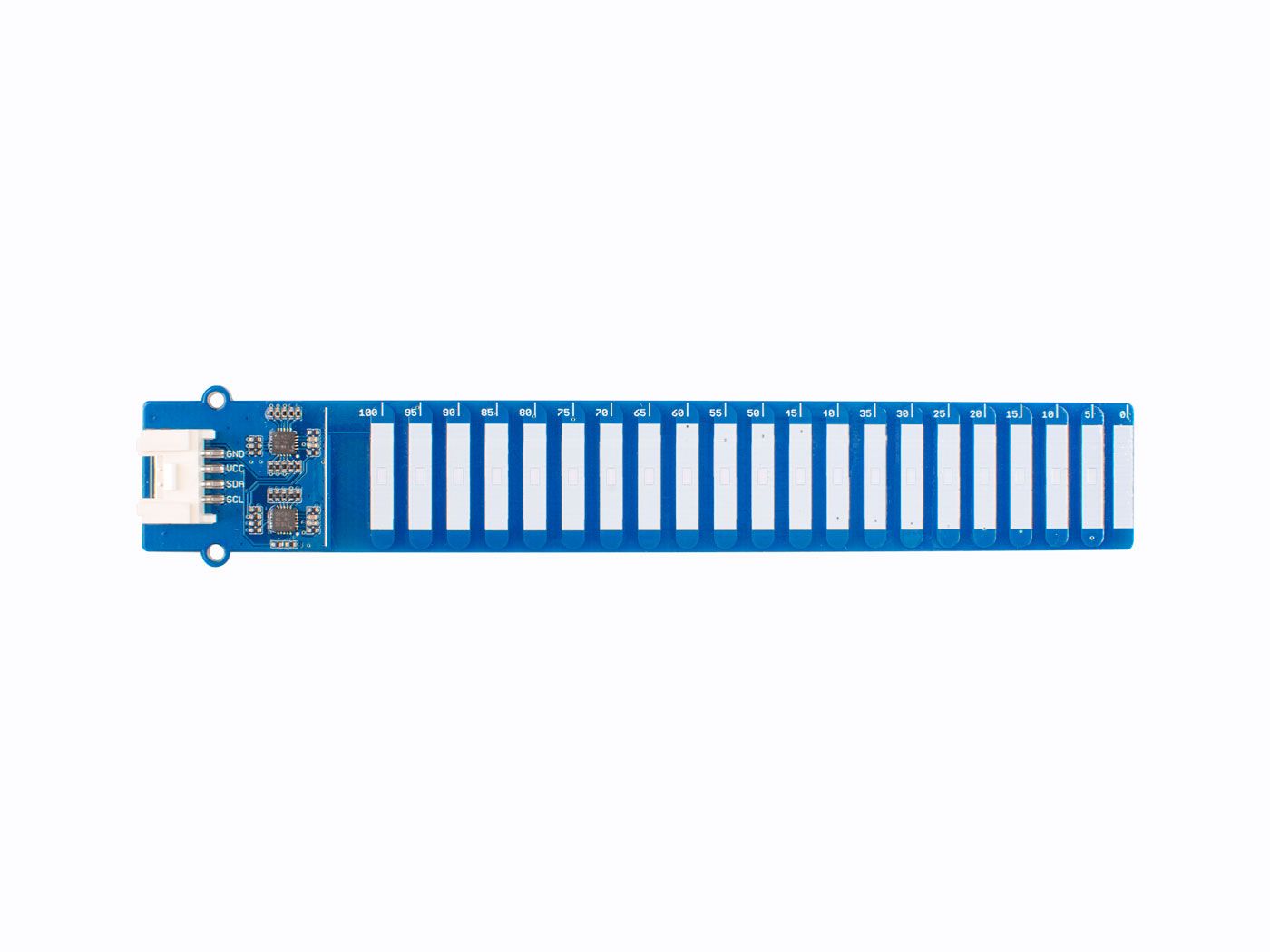

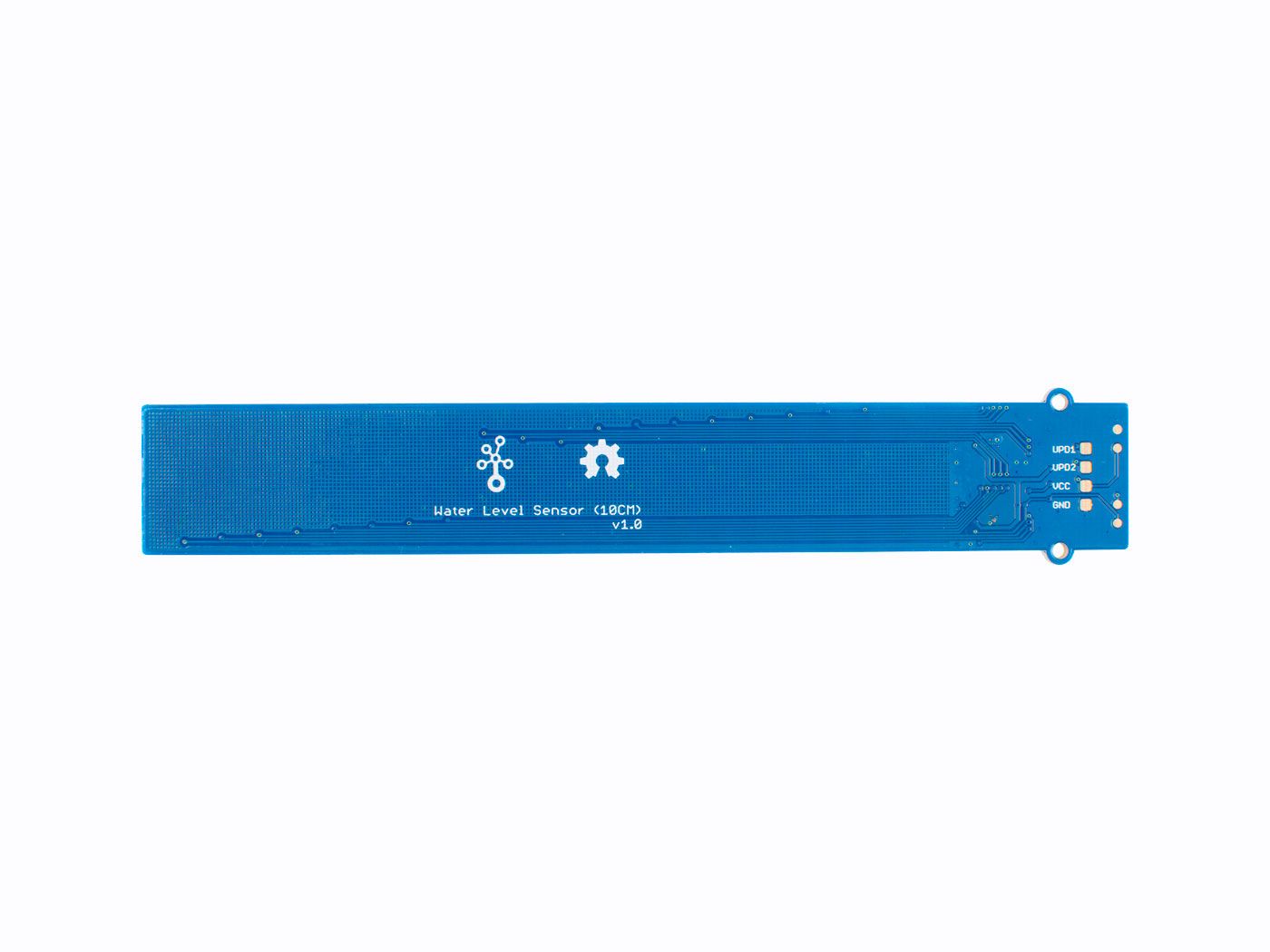

AquaStrata 10™ – Precision Water Level Sensor (Grove-Compatible)
High-Accuracy Sensing. Field-Proven Durability.
The AquaStrata 10™ gives you pinpoint water level tracking in compact, rugged form — with ±5mm accuracy and zero exposed electronics. Built on capacitive sensing and Grove technology, it connects instantly to your favorite microcontroller or dev board via I²C, no soldering or setup required.
From tank monitoring to NGO field systems, this sensor is ready to integrate into mission-critical environments where reliability matters.
Features
- Fully waterproof, corrosion-resistant probe
- ±5mm accuracy for reliable water level tracking
- Grove-compatible I²C interface (0x78 / 0x77)
- No exposed pads or wires — safe for long-term use
- Plug-and-play setup — no coding required to test
Applications
- Rainwater harvesting systems
- Off-grid tank level tracking
- Overflow prevention in smart plumbing
- School, prepper, or NGO water infrastructure
- Integration into MORA WaterSafe Kits
Specifications
| Parameter |
Value |
| Measurement Range |
0–10 cm |
| Accuracy |
±5mm |
| Voltage Range |
3.3–5V |
| Output |
I²C (0x78 / 0x77) |

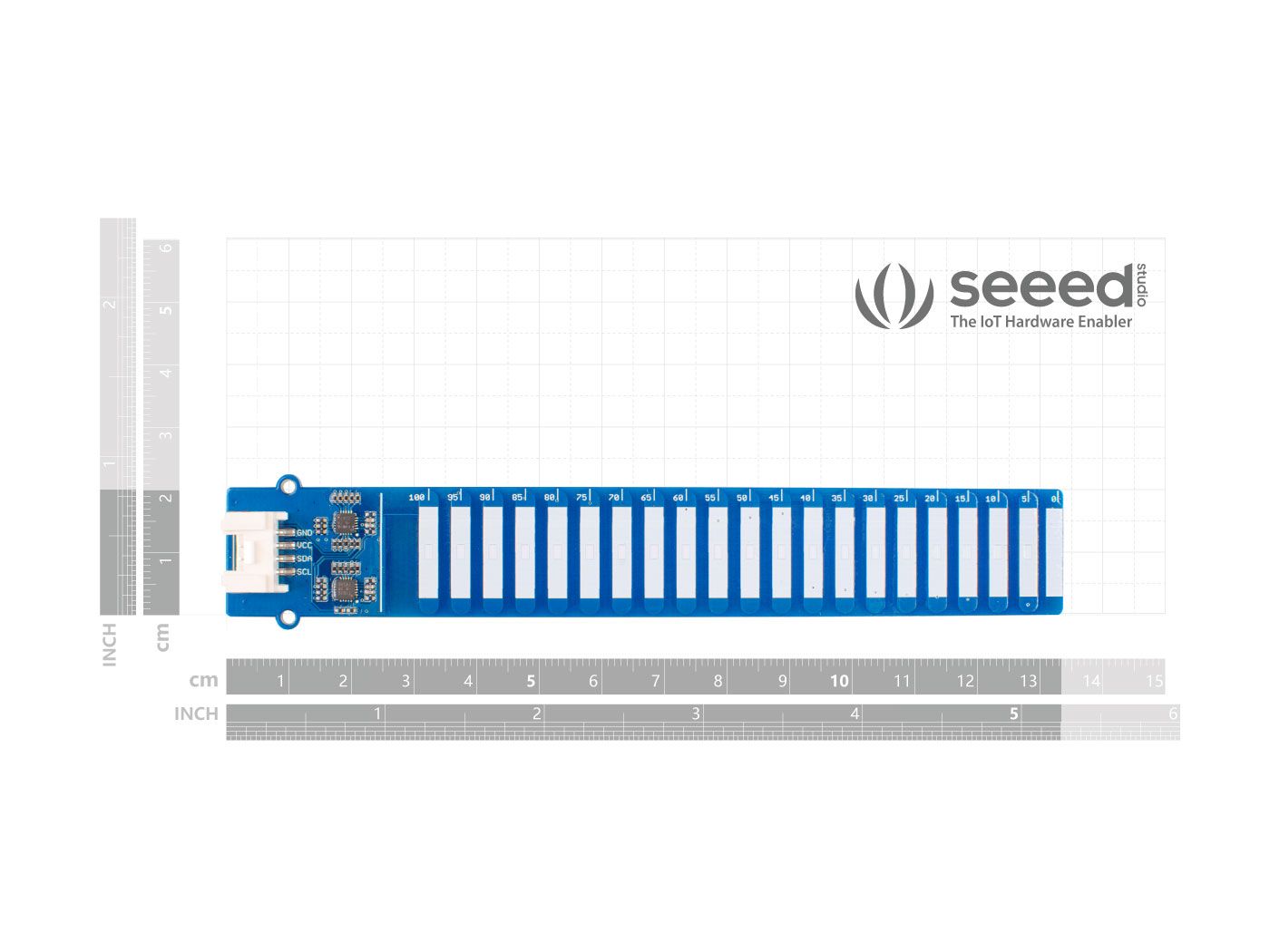

| Dimensions |
20 × 133 mm |
| Weight |
9.8g |
What’s Included
- 1 × AquaStrata 10™ Capacitive Water Level Sensor
- 1 × Grove Cable (20cm)

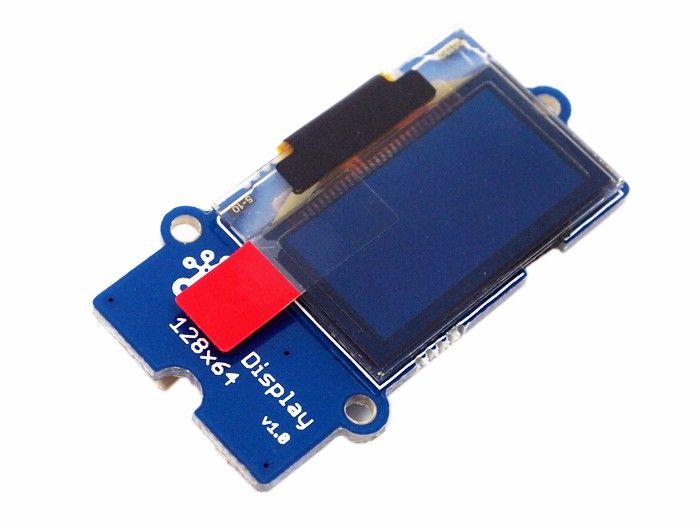

- 1 × Grove – OLED Display (0.96")
⚠️ Important Use Notes:
- Do not submerge the sensor beyond the marked white line.
- Avoid scratching or removing the blue protective layer — it ensures water resistance and accuracy.
🛑 Legal / Use Disclaimer:
AquaStrata 10™ is designed for educational, DIY, and general-purpose water system monitoring. It is not certified for regulatory compliance, safety-critical systems, or commercial instrumentation without third-party validation. Always validate sensor performance under your own deployment conditions.
📦 Shipping Notice: This item currently ships to U.S. addresses only. International orders will be refunded.
❓FAQ
Q: Can I fully submerge the sensor?
A: No. Only the black sensing region should be submerged. Keep the white label and connector dry.
Q: What systems can I connect it to?
A: Any Grove-compatible board, including Arduino, Raspberry Pi (with Grove Hat), ESP32, and Seeeduino.
Q: Can it be used outdoors?
A: Yes, but proper mounting and waterproofing of the connector area is recommended for long-term exposure.
Q: Does it support analog output?
A: No — this model uses I²C digital output only.
Q: How accurate is the reading?
A: Within ±5mm across the 10cm range, assuming proper installation.
📦 Curated by MORA Global Logistics — Tools for Builders, Not Just Buyers.
